Jl1341l High Quality Industrial High Speed Sewing Machine With Large Hook
Product introduce
This is a barrel-type thick material sewing machine, using a boutique extra-large shuttle, a new adjustable frame, the sewing force is increased on the basis of the old model, and the lifting height of the presser foot is increased by 2mm.
Product advantages
The fully automatic circulating oil supply and lubrication design greatly reduces the wear of parts and reduces sewing noise. The selection of spare parts is precise, and the use of new adjustable brackets greatly improves the performance.
Applications
Suitable for sewing leather goods, handbags, suitcases, car mats, shoes, etc.
Product parameter
| model | JL-1341L |
| product name | cylinder bed sewing machine |
| keyword | compound feed sewing machine |
| presser foot lift | 8mm (by hand ) 13 mm ( by knee ) |
| voltage | 220V |
| sewing material | heavy leather,fabric |
Product details
Automatic circulating oil supply device
An improved version on the basis of traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.
Thread tensioner, adjust the tension of the upper thread.
Backstitch handle
The reverse sewing handle is in a static state during sewing operation. If the sewing material needs to be reinforced, the sewing material will be fed back when the sewing material is pressed down.
Adjust the stitch length digital dial
The digital gauge dial can be adjusted in 1-6 levels. The operator can easily rotate the dial to achieve the ideal gauge. Turn clockwise to shorten the gauge, and vice versa.

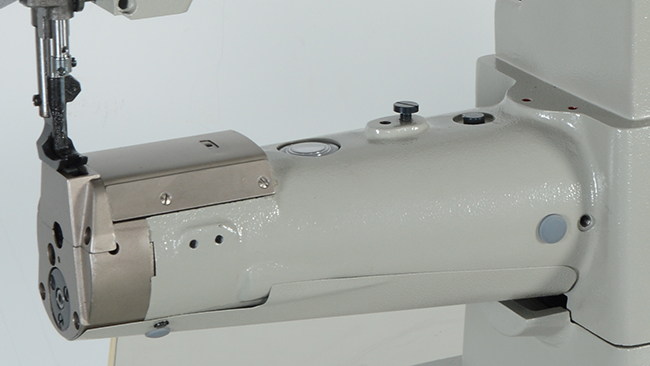

Cylindrical sewing table
The cylindrical sewing table can sew difficult and complicated operations such as cylindrical bag openings that cannot be sewn by a flat sewing machine. The cylindrical diameter is 70mm.
